Tillers & Cultivators
Starting cold engine
1
Lay the unit on a flat area and keep movable attachment parts clear of all obstacles.
2
Move stop switch button (A) to RUN position.
3

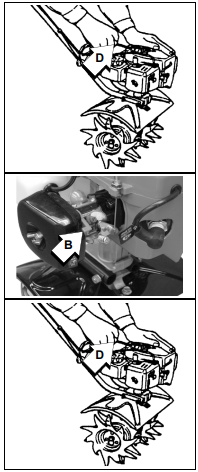

Move choke lever (B) to Cold Start Position ( ). Throttle must remain at idle for starting.
4
Pump purge bulb (C) 5-10 times until fuel is visible and flows freely in the clear fuel tank return line.
5
Firmly hold unit down. Pull recoil starter handle/rope (D) until engine fires, or a maximum of three (3) pulls.
6
Move choke lever (B) back to Run ( ) position.
7
Pull recoil starter handle/rope (D) until engine starts and runs, or a maximum of 10 pulls.
8
If engine does not start with choke in Run position after 10 pulls, engine may be flooded. Allow unit to stand for one minute. Assure choke remains in Run ( ) position and pull starter handle/rope an additional 10-15 times, or until engine starts and runs.
9
After starting the engine, allow unit to warm up at idle for 2-3 min.
