Hedge Trimmers

WARNING

Moving parts can amputate fingers or cause severe injuries.
Keep hands, clothing and loose objects away from all openings.
Always stop unit, disconnect spark plug or remove battery, and make sure all moving parts have come to a complete stop before removing obstructions, clearing debris, or servicing unit.
Allow unit to cool before performing service. Wear gloves to protect hands from sharp edges and hot surfaces.

WARNING

Operating a poorly maintained unit can result in serious injuries to operator or bystanders.
Always follow all maintenance instructions as written, otherwise serious personal injury can result.

Skill Levels

• Level 1 = Easy to do. Common tools may be required.

• Level 2 = Moderate difficulty. Some specialized tools may be required.

• Level 3 = See your dealer.

Click HERE or go to http://www.echo-usa.com/products/maintenance-kit

Maintenance Intervals

IMPORTANT NOTE

Time intervals shown are maximum. Actual use and your experience will determine the frequency of required maintenance.

MAINTENANCE PROCEDURE NOTES:

1. Apply lithium based grease every 15–20 hours of use.

2. Inspect blade, and clean and sharpen as needed. Lubricate blades periodically during use.

• Replacement is recommended based on the finding of damage or wear during inspection.

Maintenance and Care

WARNING

Remove battery before performing maintenance procedures.

Cleaning battery and battery compartment

WARNING

Risk of electric shock or fire. Do not use conducting materials to clean battery or battery compartment. Otherwise serious personal injury may result.

1. Release power switch and operator presence switch, and allow unit to stop.

2. Make sure power indicator LED is not illuminated.

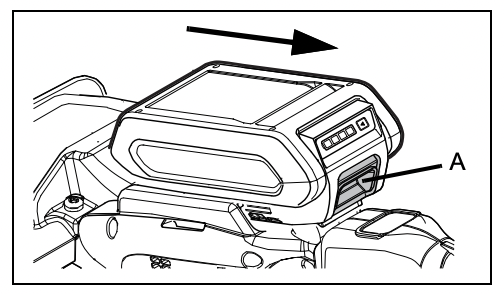

3. Depress battery latch release (A) and slide battery out of power head.

4. Use compressed air or a soft bristle brush to remove debris from battery and battery compartment.
