Guide Bar and Saw Chain Installation and Removal
NOTICE

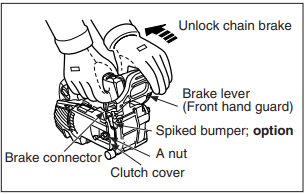

• Move the chain brake lever (Front hand guard) fully rearward to remove or install the clutch cover to chain saw.
• Align the brake connector of the clutch cover to the groove on the side of the brake lever (Front hand guard).
1
Remove spark plug lead.
2
Loosen the clutch cover nut and remove clutch cover.
3
Remove bar and saw chain if necessary. See “Maintenance and Care” section for guide bar/ saw chain maintenance procedures.
4

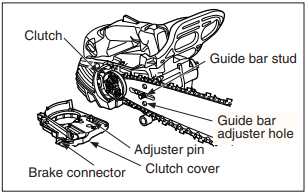

Mount guide bar on stud and slide toward clutch to make saw chain installation easier. Install chain with cutters on top of guide bar facing forward.
5

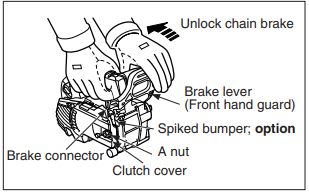

. Unlock the chain brake, and install the clutch cover over the guide bar stud. Ensure chain tension adjuster pin fits into the guide bar adjuster hole, brake band is positioned around clutch drum. Tighten clutch cover nut finger tight.
