Install Blower Pipes

Install Blower Pipes

Never perform maintenance or assembly procedures with engine running or serious personal injury may result.

1

Stand unit upright on blower base

2

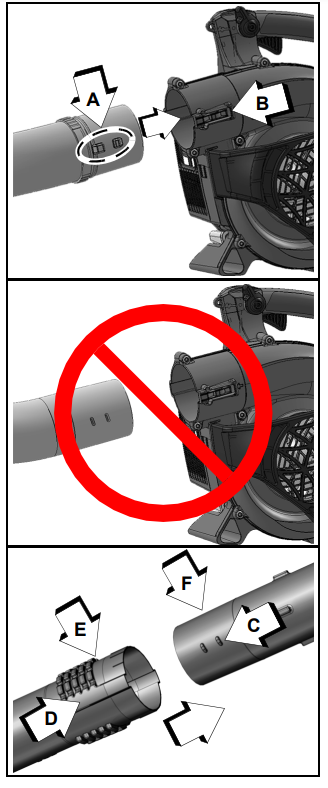

Align large locking ribs (A) on curved blower pipe with pipe lock (B) in fan case. Slide curved blower pipe into fan case until a clicking sound is heard.

3

Do not assemble the opposite end of the curved blower pipe to the fan case.

4

Align tabs (C) with grooves (D) and slide straight blower pipe (E) over curved pipe (F) until there is light resistance. Do not force the connection.

5

Hold curved pipe, and turn straight pipe clockwise, engaging positive locking channels until connection is firm.

6

Note: Blower use will eventually loosen pipe connections. Exclusive positive locking system allows pipes to be tightened. If loosening occurs, remove straight pipe, and reinstall according to instructions 3 and 4.
